ARRI Maxima MX30
– Joystick can be freely positioned
– Offset and off-balance compensation up to 2 kg / 4.4 lb.
– Wireless remote control for pan, tilt, and roll
– On the fly adjustments and system controls 1.5” onboard display
– Five programmable user presets via laptop prep integration

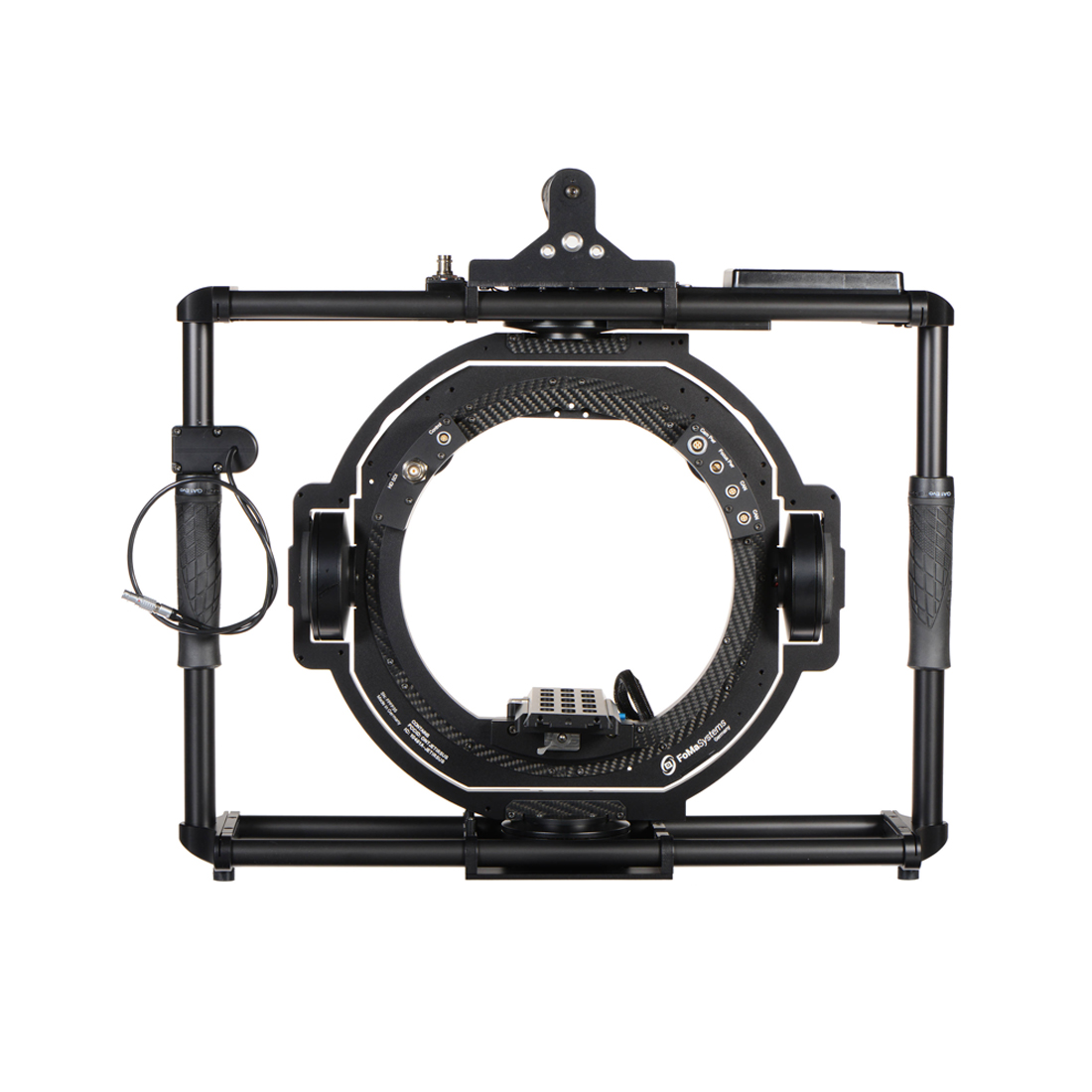

The Arri MAXIMA is a three-axis electronically fully stabilized high-performance gimbal. Its compact, lightweight design and perfect center of gravity provide new levels of freedom while its stable construction allows for compatibility with any camera system weighing 30 kg / 66 lb or less.
Payload Capacity
30 kg / 66 lb or less
Positioning Accuracy
0,017°
Positioning Speed
PAN: 160°/s, TILT: 200°/s, ROLL: 90°/s
Rotation Range
PAN: 120°, TILT: 90°, ROLL: 80°
Dimensions
Width: 55 cm
Height: 50 cm
Camera Dimensions
Height from Mounting Plate: 19 cm
Width: 23 cm
Lenght: 100 cm
Operating Temperature
-15°C…+50°C
I/O
– Anton Bauer gold mount with V-Lock adapter plate
– 12v high-capacity camera power
– D-Tap out
– HD-SDI video lines
– Mitchell, Euro mount adapter for standing applications
Weight
Approximately 10 kg / 22 lb
