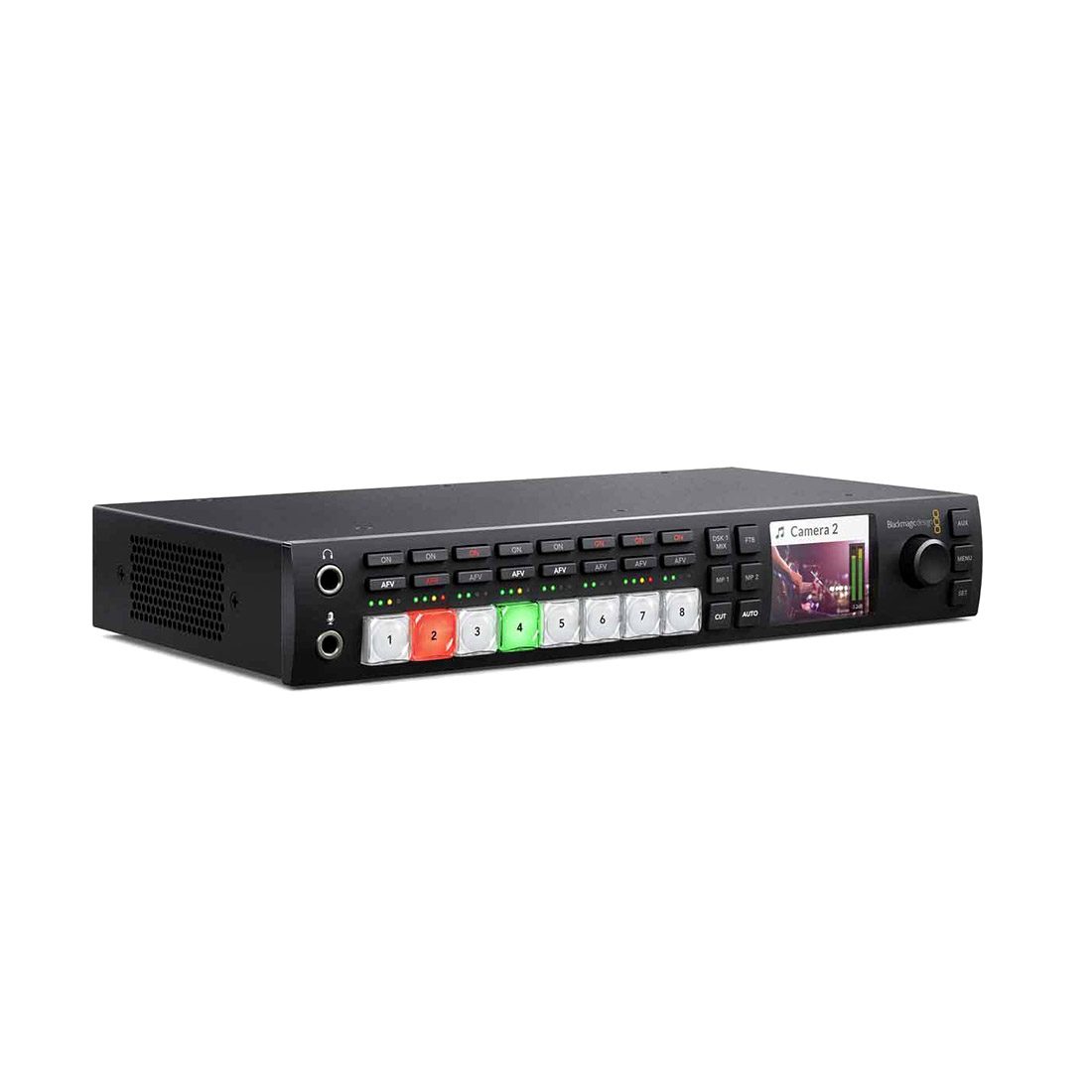

Blackmagic Design ATEM Television Studio HD
Blackmagic Design’s ATEM Television Studio HD includes 4 SDI and 4 HDMI inputs with resync on all inputs so you can use it with broadcast or consumer cameras. The ATEM Television Studio HD is perfect for live production, episodic television programming, web shows, AV or even live coverage of gaming competitions. Simply plug in cameras, game consoles or computers and start switching live!
Total Video Inputs
8
Total Outputs
8
Total Aux Outputs
1
SDI Rates
270Mb, 1.5G, 3G
Total Audio Inputs
2x XLR
Total Audio Outputs
None, embedded audio only
Timecode Connection
None
SDI Video Inputs
4 x 10-bit SD/HD switchable. 2 channel embedded audio
HDMI Video Inputs
4 x HDMI type A, 10-bit SD/HD switchable. 2 channel embedded audio
Reference Inputs
Tri-Sync or Black Burst
Video Input Re-Sync
On all 8 inputs
SDI Program Outputs
5x 10-bit SD/HD Switchable
HDMI Program Outputs
None
SDI Audio Outputs
2 Ch embedded into SDI output
Total Multi Views
1
SDI Multi View Outputs
1
HDMI Multi View Outputs
1
Computer Outputs
None
Standards
| SD Video Standards | 525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or 16:9 |
| HD Video Standards | 720p50, 720p59.94 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080i50, 1080i59.94 |
| Ultra HD Video Standards | None |
| SD Compliance | SMPTE 259M, 292M and 424M |
| Video Sampling | 4:2:2 10-bit |
| Colour Precision | 4:2:2 10-bit |
| Colour Space | 4:2:2 YUV |
| HDMI Input Resolutions for Computers | 720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720p 59.94Hz 50Hz and 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 1920 x1080i 50 and 59.94Hz 60Hz. |
| Colourspace Conversion | Hardware based real time |
| Processing Delay | 6 lines |
| Audio Mixer |
10 input x 2 channel mixer. Selectable On/Off/Audio-FollowVideo. Level and Peak metering. Master gain control. Headphone output level control with a separate mix of Program, Talkback and Sidetone |
