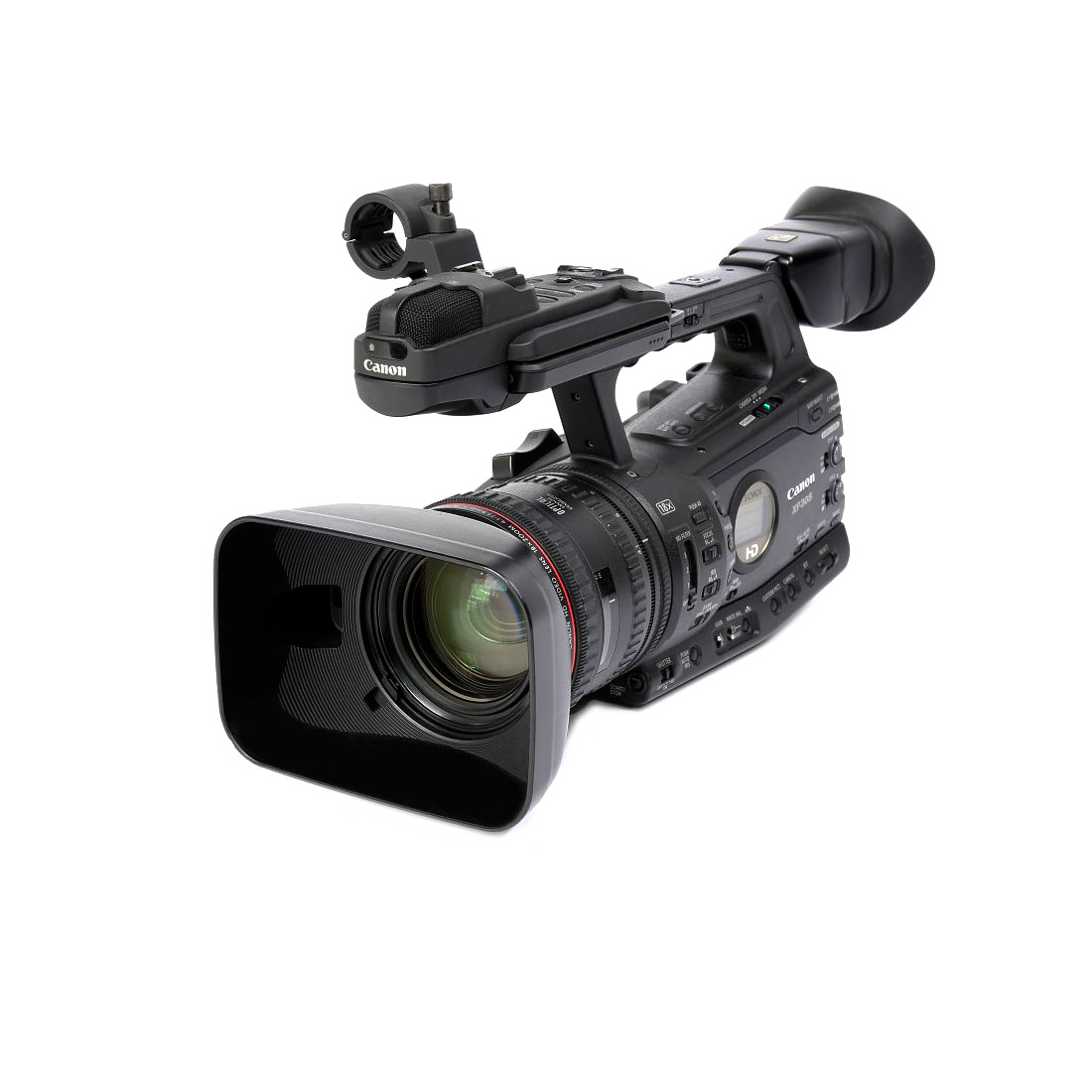

Canon XF305
The Canon XF305 features full HD recording at up to 50 fps or 50i.
Model
Canon XF305
Sensor
1/3″ CMOS
Lens
Fixed 18×4.1 f/1.6-2.8
Recording Format
MPEG-2 Long GOP
File Format
MXF
Resolution
| FHD | 1920×1080 |
| HD | 1440×1080 |
| HD | 1280×720 |
Maximum Frame Rate (PAL)
| FHD | 50 fps / 50i |
| HD | 50 fps / 50i |
| HD | 50 fps / 50i |
Media
| Internal Recording | CF |
| Setup / Still Images | SD |
Audio Recording Format
PCM 2 Channel 16-bit 48 kHz
Gain
-6 – 33 dB
Internal ND Filters
Clear
ND 0.6 (2 Stops)
ND 1.2 (4 Stops)
ND 1.8 (6 Stops)
Batteries
Canon BP
Inputs
1x BNC (Genlock)
1x BNC (Timecode I/O)
2x 3-pin XLR (Audio)
1x 3.5mm Mini-jack (Headphones)
Outputs
1x BNC (SDI)
1x Component
1x Composite 3.5mm (A/V)
1x HDMI
1x USB 2.0
Weight
2.7 kg
