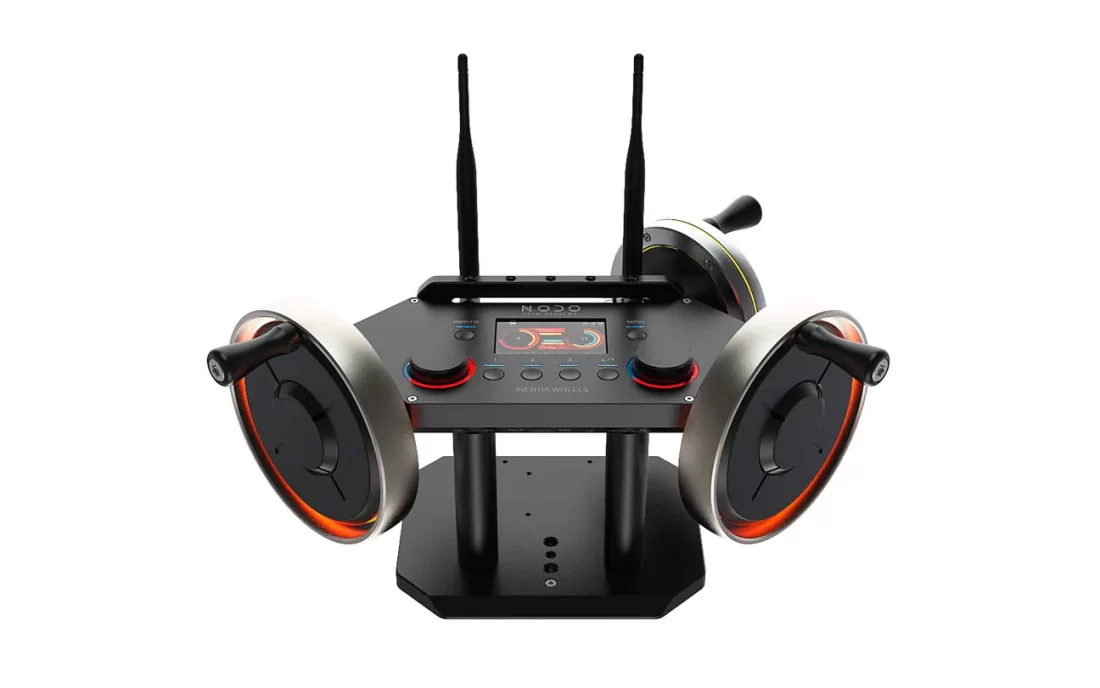

Nodo Inertia Wheels MAX 3-Axis Pro Kit
NODO Inertia Wheels 3-Axis Pro Kit are a complete long-range wireless, pan, tilt, roll controller featuring proprietary Inertia Motors™ inside the pan and tilt wheels, compatible with Freefly MoVI, DJI Ronin, and more gimbal
Compatibility
DJI Ronin 2
DJI Ronin S
Third-Party Gimbals with SBUS Connection
Transmission
1.8 miles / 3 Km wireless, 98′ / 30 m wired
Latency
10 ms
Frequency
2.4 and 5.8 GHz dual frequency
Mount Type
Mitchell mount, 1/4″-20 and 3/8″-16 mounting threads for accessories
Voltage
22.8 V
Battery
| Type | TB50 4280 mAh/97.58Wh Battery* |
| Battery Life | up to 18-hours** |
| Charge time | 1.5 hours |
*Same batteries used with the DJI Ronin 2 and Inspire 2
**As listed by DJI, the Battery Life is dependant on the shooting environment, the life of the battery, and accessories powered via the Master Wheels such as onboard monitors and wireless video receiver.
DC In
12-27 V
DC Out
14.4 V / 8 A (max)
Operating Temperature
-4 to 104°F / -20 to 40°C
Charging Temperature
41 to 113°F / 5 to 45°C
