Sony PXW FS7
Digital Cinema

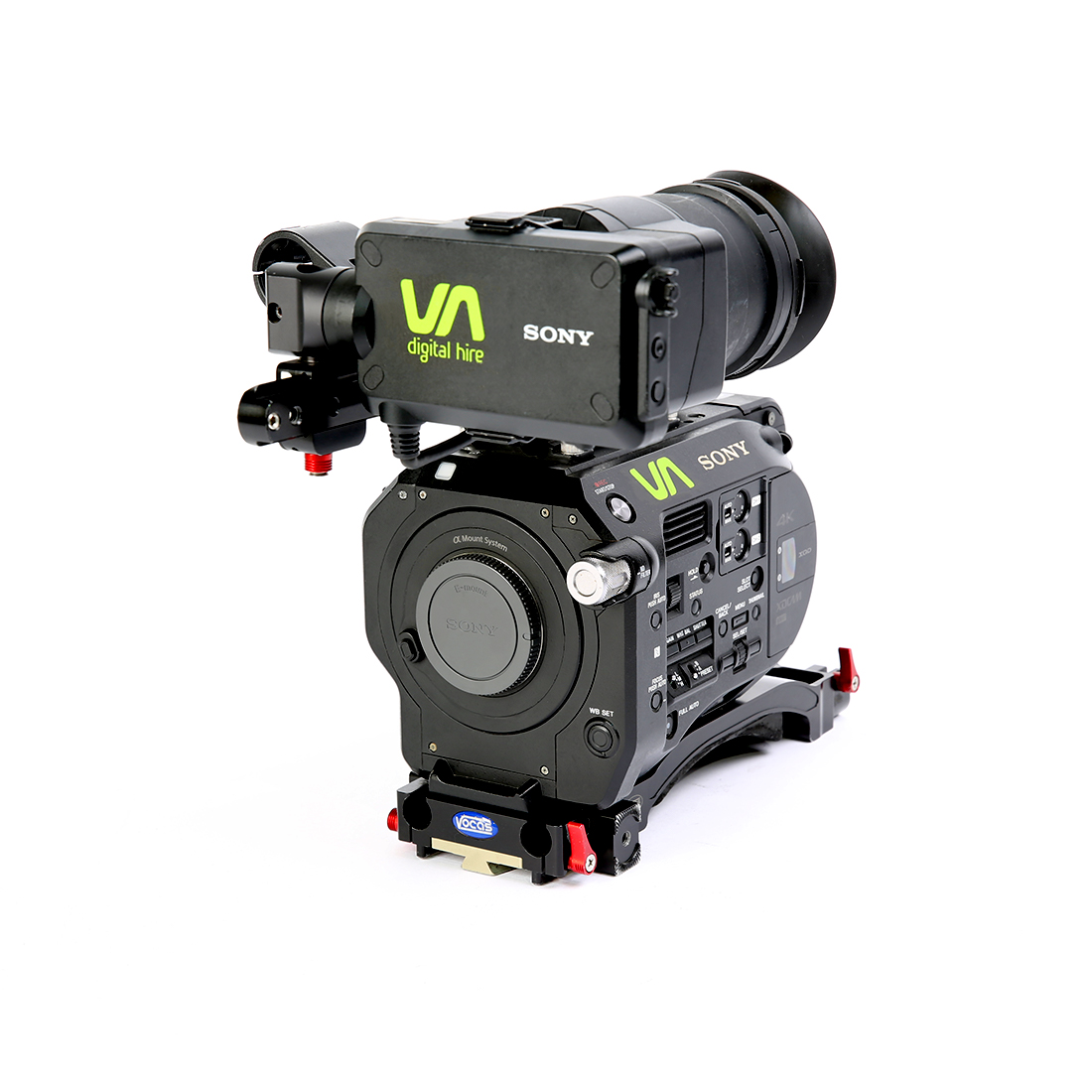

Sony PXW FS7

The Sony PXW-FS7 is a 4K Super 35mm camcorder with an Exmor CMOS sensor, offering up to 60fps in DCI 4K and 180fps in Full HD. It supports 10-bit 4:2:2 XAVC-I recording and can output 4K/2K RAW with an optional recorder, catering to various production needs.

With a modular design, the FS7 features a detachable grip, electronic variable ND filter, and an E-mount lens system, offering flexibility for handheld shooting and different production environments, including documentaries.

Download Specifications

Download Record Times

Add to Kit

Model

Sony PXW-FS7

Sensor

35mm Exmor CMOS

Lens Mount

E-Mount

Recording Format

XAVC-I
XAVC-L
MPEG 4:2:2
ProRes 4:2:2 / 4:2:2 HQ (using Sony XDCA-FS7 Extension Unit)

File Format

XAVC-I MXF
XAVC-L MXF
MPEG 4:2:2 MXF
ProRes 4:2:2 / 4:2:2 HQ MOV (using Sony XDCA-FS7 Extension Unit)

Resolution

XAVC-I 4K 4096×2160
XAVC-I UHD 3840×2160
XAVC-I FHD 1920×1080
XAVC-L UHD 3840×2160
XAVC-L FHD 1920×1080
MPEG FHD 1920×1080
MPEG HD 1280×720
ProRes FHD 1920×1080 (using Sony XDCA-FS7 Extension Unit)

Maximum Frame Rate (PAL)

XAVC-I 4K 60 fps
XAVC-I UHD 60 fps
XAVC-I FHD 150 fps
XAVC-L UHD 60 fps
XAVC-L FHD 120 fps / 50i
MPEG FHD 25 fps / 50i
MPEG HD 50 fps
ProRes FHD 25 fps / 50i (using Sony XDCA-FS7 Extension Unit)

Media

XQD G Series

Audio Recording Format

LPCM 24-bit 48 kHz 4 channel

ISO

ISO Range 500-8000
Native ISO 2000

Internal ND Filters

Clear
IRND 0.6 (2 Stops)
IRND 1.2 (4 Stops)
IRND 1.8 (6 Stops)

Batteries

Sony BP-U
V-Lock (using Sony XDCA-FS7 Extension Unit)

Inputs

1x XLR 3-pin (Audio)
1x DC Jack (DC Power)
1x 2.5mm Mini-jack (Remote)
1x USB Mini-B

Outputs

2x BNC (SDI Out)
1x 3.5mm Stereo Mini-Jack (Headphone)
1x HMDI

Weight

2.0 kg (body only)
3.1 kg (with accessories*)

*Including camera body, body cap, top handle, Vocas monitor mount, screen, screen loupe, base plate
