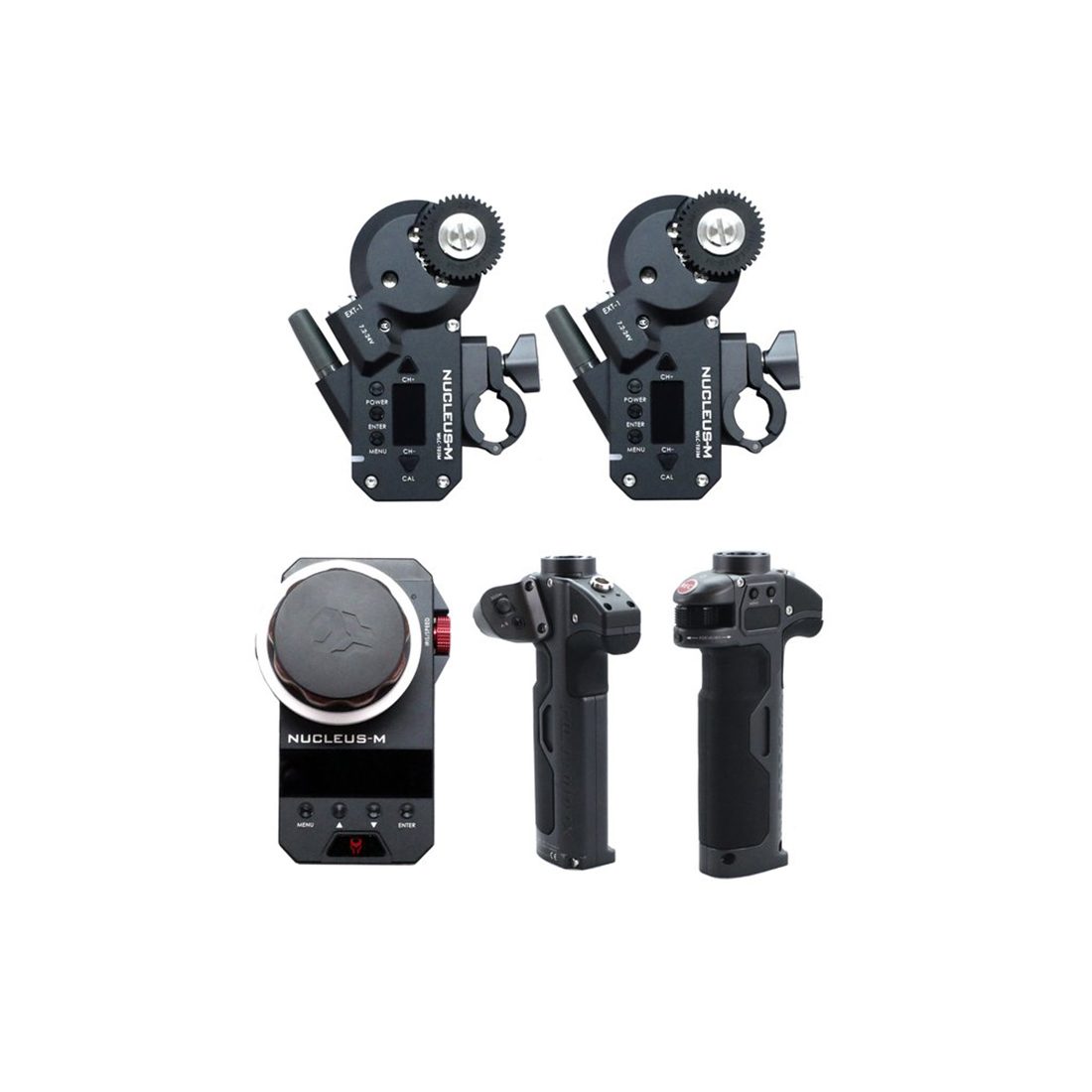

Tilta Nucleus-M Wireless Follow Focus System
The Nucleus-M features a 1000′ transmission range and comes with built-in wireless receivers, a FIZ hand controller, and two handgrips—one to control focus, and the other iris and zoom. The lens drive motors each feature a cine standard 0.8 MOD drive gear and two 7-pin connectors, which enables you to freely swap or interchange each motor. Have full control on Cine lenses or compatible “cine-moded” DSLR lenses. Ideal for 3-axis gimbals, shoulder mounts systems, and drone shoots.
– 1000′ Wireless Range
– Motors Feature Integrated Receivers
– FIZ 3-Channel Hand Unit
– Motors Daisy-Chain for Power
– Handgrips with Assignable Control
Model
Tilta Nucleus M
Wireless Range
304 m / 1000′
Batteries
Model: 18650
3.7 VDC, 3000mAh
Weight
| FIZ Hand Unit | 0.53 kg / 1.16 lb |
| Handgrips (per unit) | 0.24 kg / 0.53 lb |
| Motor | 0.22 kg / 0.49 lbs |
Technical Assistance
Tiltamax Nucleus-M Firmware Update 18.03.19.3 – May 5th, 2018
